What Is a Push Button Switch and How It Works?
A push button switch is a mechanical device that controls an electrical circuit through pressing action. It is widely used in electronics, industrial control systems, and household equipment. The pressing motion changes the contact state and allows current to pass or stop. There are two common contact types:- NO (Normally Open): the circuit is open at rest and closes when pressed
- NC (Normally Closed): the circuit is closed at rest and opens when pressed
KCD1-101 White with Red Light Metal Rocker Switch – Inline Reset OFF
The KCD1-101 white rocker switch features a metal body and a red indicator light, showing the switch’s status clearly. It has a reset OFF function that automatically returns to the original position after pressing. This switch controls power and signals in various devices, such as household appliances, industrial controls, and consumer electronics.
The metal casing ensures durability, while the red indicator light illuminates when the device is powered on. The rocker mechanism provides easy operation, making it suitable for power switches and control panel buttons.
The self reset feature suits devices that require frequent state changes. Its compact design allows easy installation in panels and equipment. The KCD1-101 is reliable in a wide range of applications, from consumer electronics to automation systems.
Preparation Before Wiring
Before wiring, preparation focuses on confirming tools, checking specifications, and ensuring safe working conditions. Clear identification of pins and load type helps avoid incorrect connections, while basic safety steps reduce risks during installation.
Tools and Basic Requirements
- Wire stripper or cutting tool
- Multimeter for pin identification and continuity testing
- Soldering tools or connectors
- Insulation tape or heat shrink tubing
Pre check Items
- Confirm rated voltage and current of the switch
- Identify load type such as DC or AC
- Check the pin layout from the datasheet
Safety Notes
- Always disconnect power before wiring
- Avoid exposed conductors that may cause short circuits
- Use protection methods in high power conditions
Proper preparation helps reduce wiring errors and improves reliability.
2 Pin Push Button Switch Wiring
A 2 pin push button switch uses a single pair of contacts to control current flow. The wiring is direct and follows a simple series connection between power and load. It is commonly used in basic circuits where only on and off control is required.

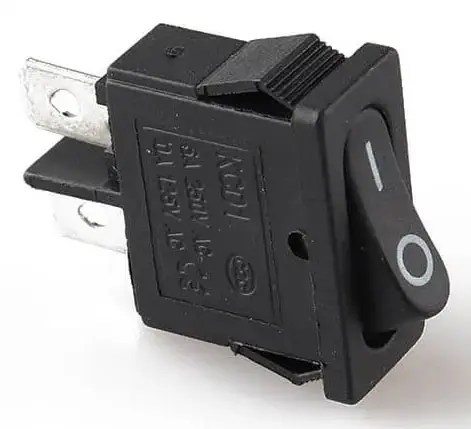

KCD1-101B Rectangular Rocker Switch – 19.2X6.8mm, Black/Red, 6A 250V, 2 Pin, Copper Contacts
This KCD1-101B rectangular rocker switch features a black/red color combination and measures 19.2X6.8mm. With a current rating of 6A at 250V, it includes 2 pin connectors with copper contacts for reliable performance. Ideal for a range of applications, it provides smooth and efficient switching functionality, making it suitable for various control systems and devices.
Structure and Principle
A 2 pin push button switch has a simple structure with one pair of contacts. It works as a basic series control component.
Wiring Steps
- Connect the power positive to one terminal
- Connect the other terminal to the load
- Connect the load back to the power negative
Operation
- Press: contacts close and current flows
- Release: contacts open and current stops
Usage Notes
- No polarity requirement for the contact part
- Suitable for simple control circuits
- Often used for signal triggering or basic power control
4 Pin Push Button Switch Wiring
A 4 pin push button switch combines switching and indication in one unit. It includes a contact pair for circuit control and an LED for visual feedback. The wiring depends on how the LED is used, either linked with the load or powered separately.
KCD1-201N Rocker Switch with Green Light and Red Button – 4 Pin ON/OFF
The KCD1-201N rocker switch features a green indicator light and a red actuator button that clearly shows the switch status. It has four pins for reliable ON/OFF control and stable electrical connection. Rated for common voltage and current levels, this switch delivers dependable performance in various electrical circuits.
The built in green light illuminates when the circuit is active, offering a clear visual signal of power status. The red button provides straightforward operation, and the rocker action gives a tactile response during use. With its compact size and easy panel mounting, this switch fits control panels and devices with limited space.
The 4 pin configuration ensures steady contact and helps maintain consistent performance in repeated switching tasks. Whether installed in appliances, instruments, or control systems, the KCD1 201N rocker switch provides clear status indication and simple ON/OFF control for everyday needs.
Structure Features
A 4 pin push button switch usually includes two parts:
- One set of switch contacts
- One LED circuit
This structure fits applications that need visual indication.
Pin Identification
Typical layout includes:
- 2 pins for the switch
- 2 pins for the LED
Some models have internal connections, so checking the datasheet is recommended.
Method 1: LED and Load Work Together
- Power passes through the switch to the load
- LED is connected in parallel with the load
Result:
- When pressed, the device turns on and the LED lights up
Method 2: LED Independent Power
- LED is connected directly to power
- The switch controls only the load
Result:
- LED stays on to show power presence
- The button controls the device only
Application Scenarios
- Control panels
- Power buttons
- Equipment with status indication
5 Pin Push Button Switch Wiring
A 5 pin push button switch supports both switching logic and visual indication in one unit. It includes common, normally open, and normally closed contacts along with LED terminals. This allows more flexible control options and wider use in complex circuits.
Pin Definition
A 5 pin push button switch provides full control and indication functions. Typical pins include:
- C (Common)
- NO (Normally Open)
- NC (Normally Closed)
- LED positive
- LED negative
Wiring Methods
Mode 1: Normally Open Control
- Power connects to C
- Load connects to NO
Result:
- The device starts when pressed
Mode 2: Normally Closed Control
- Power connects to C
- Load connects to NC
Result:
- The device runs by default and stops when pressed
LED Wiring
- LED positive connects to power or a control point
- LED negative connects to ground
The LED can follow device status or show power status independently.
Features
- Supports two control logics
- Allows more complex interaction
- Provides clear visual indication
Typical Applications
- Industrial control systems
- Automation equipment
- Control panels
Comparison of Different Pin Types
Different pin configurations reflect differences in wiring complexity and functional capability. Comparing them helps in selecting the appropriate switch type for specific applications.
| Type | Wiring Difficulty | Function Level | Application Level |
| 2 Pin | Low | Basic switching | Entry level |
| 4 Pin | Medium | Switching with indication | General devices |
| 5 Pin | Higher | Multiple logic with indication | Industrial systems |
Common Mistakes and Troubleshooting
Wiring issues often come from incorrect pin connections or lack of verification during installation. Identifying common mistakes and applying basic testing methods helps locate problems quickly and ensures stable operation.
Common Issues
- NO and NC connected incorrectly
- LED polarity reversed
- Wrong pin identification
- Loose or poor connections
Troubleshooting Methods
- Use a multimeter to test continuity
- Test both pressed and released states
- Check wiring step by step with the diagram
Practical Tips
- Label wires before connection
- Test with low voltage first
- Confirm stability before full operation
Installation Process
Installation follows a simple sequence from mounting to final testing. Proper fixing and organized wiring help maintain stable performance and reduce connection issues over time.
Basic Steps
- Drill the mounting hole
- Fix the switch in position
- Connect wires according to the diagram
- Check all connections
- Power on and test
Installation Notes
- Make sure the switch is firmly mounted
- Avoid vibration that may loosen connections
- Arrange wiring to reduce interference
Conclusion
Push button switch wiring depends on clear understanding of pin functions and circuit logic. A 2 pin switch works for basic control. A 4 pin switch adds indication. A 5 pin switch supports more complex control needs. Select the proper type based on the system and follow correct wiring steps.
