Power connectors are used in almost every electrical and electronic system, from household devices to enterprise servers and industrial equipment.
Among the most widely adopted standards are IEC power connectors, which provide a universal and standardized way to deliver electrical power safely and efficiently across different regions and applications.
IEC connectors are commonly found in computers, monitors, data centers, networking devices, audio equipment, and industrial systems.
Their standardized design allows manufacturers and users to simplify equipment compatibility, replacement, and maintenance.
This guide explains the most common IEC power connector types, their applications, and how to choose the right power cable for different environments.
What Are IEC Power Connectors?
IEC power connectors are standardized electrical connectors defined by the International Electrotechnical Commission (IEC). The most commonly used standard for detachable power cords is IEC 60320.
These connectors are designed to ensure compatibility between power supplies and electrical devices worldwide.
Instead of using proprietary connectors for each product, manufacturers can adopt a common interface that supports easier installation and replacement.
IEC connectors are typically divided into two parts:
- Connector (female)
- Inlet (male)
For example, a C13 connector plugs into a C14 inlet commonly found on desktop computers, monitors, and network switches.
Why IEC Connectors Are Widely Used
IEC power connectors are popular in commercial and industrial applications because they support:
Global Compatibility
Many IEC connector types are recognized internationally, making them suitable for products distributed across multiple countries and markets.
Easy Replacement
Detachable power cords simplify maintenance and cable replacement without changing the entire device.
Standardized Power Distribution
Data centers, offices, and industrial facilities often rely on standardized IEC connectors to streamline power management and reduce cable complexity.
Improved Equipment Flexibility
Different cable lengths, plug types, and regional wall outlets can be paired with the same equipment connector.
Common IEC Power Connector Types
IEC C13 / C14
The C13 and C14 combination is one of the most common IEC connector types used in IT and office environments.
Typical Applications
- Desktop computers
- Monitors
- Printers
- Network switches
- UPS systems
The C13 connector is a female connector attached to the power cord, while the C14 inlet is the male connector integrated into the equipment itself.
This grounded connector design supports medium-power devices and is widely used in office electronics, rack-mounted equipment, and IT infrastructure. C13 to C14 power cables are also commonly used for power distribution inside server racks and PDUs.

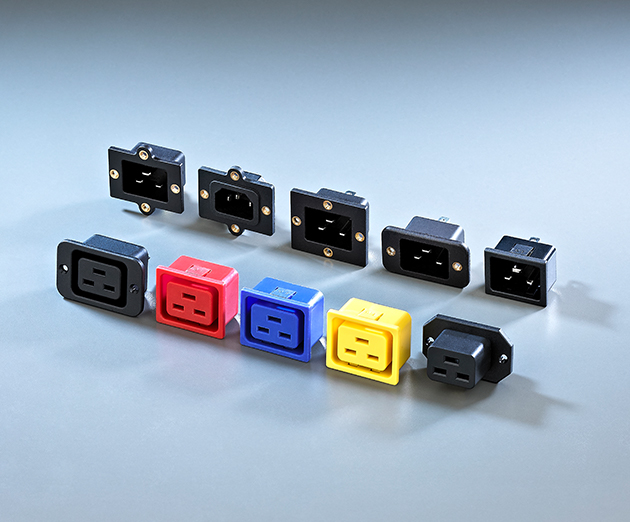

IEC C19 / C20
C19 and C20 connectors are designed for higher current and higher power applications.
Typical Applications
- Servers
- High-capacity PDUs
- Enterprise networking equipment
- Industrial power systems
These connectors feature a larger physical size and a higher current handling capability, making them suitable for high-density data center environments.
Compared with C13/C14 connectors, C19/C20 connectors are designed for equipment with greater power demands and continuous operation requirements.
IEC C5 / C6
The C5 connector is often referred to as the “cloverleaf” or “Mickey Mouse” connector because of its shape.
Typical Applications
- Laptop power adapters
- Portable projectors
- Small electronic devices
These connectors feature a compact design and a grounded structure, making them commonly used in portable electronic equipment. The matching inlet used on devices is the C6 connector.
IEC C7 / C8
C7 and C8 connectors are commonly known as “figure-8” connectors.
Typical Applications
- Game consoles
- Audio equipment
- DVD players
- Small household electronics
These connectors feature an ungrounded design and a lightweight construction, making them suitable for low-power devices. Because C7/C8 connectors do not include grounding, they are generally used only for devices with lower power and safety requirements.
Understanding Power Ratings and Safety
Different IEC connectors support different voltage and current ratings. Selecting the correct connector helps ensure safe operation and stable power delivery.
Several factors should be considered when evaluating IEC power cables:
| Category | Explanation |
| Voltage & Current Ratings | Different IEC connectors support different voltage and current levels. Choosing the correct connector ensures safe operation and stable power delivery. |
| Current Rating | Higher-power equipment requires connectors that can handle larger electrical loads without overheating. |
| Wire Gauge | Cable thickness determines current capacity and heat generation. Thicker conductors are typically used for high-power applications. |
| Temperature Rating | Some environments involve continuous heat or heavy electrical loads. Temperature-rated cables help maintain stable and reliable performance over time. |
| Certification Standards | Certified power cables are tested for safety, durability, and compliance with regional regulatory requirements. |
IEC Connectors in Data Centers and IT Infrastructure
IEC power connectors are widely used in modern IT environments because they simplify structured power distribution.
A typical setup may include:
- C13/C14 cables for standard servers and switches
- C19/C20 cables for high-density equipment
- PDUs with multiple IEC outlets
- UPS systems using standardized IEC connections
This standardized approach allows easier equipment deployment, simplified maintenance, and better cable organization inside server racks.
IEC vs Other Power Connector Standards
Although IEC connectors dominate IT and commercial equipment, other connector standards are also widely used around the world.
NEMA Connectors
NEMA connectors are primarily used in North America and are commonly found in residential and industrial power systems.
CEE Connectors
CEE connectors are often used in industrial and outdoor environments where higher current capacity and weather resistance are required.
Compared with region-specific standards, IEC connectors are more commonly associated with electronic equipment, office systems, and international compatibility.
How to Choose the Right IEC Power Cable
Selecting the correct IEC power cable depends on several factors.
Identify the Equipment Connector
Check the device inlet type:
A C14 inlet requires a C13 cable, while a C20 inlet requires a C19 cable. Similarly, a C6 inlet is paired with a C5 cable, and a C8 inlet is matched with a C7 cable.
Consider Power Requirements
Higher-power equipment should use connectors and cable gauges designed for larger electrical loads.
Check Regional Plug Types
The wall plug side of the cable may vary depending on the country or regional electrical standards, while the IEC connector side remains fully standardized.
This means the same IEC device connection can be used globally, with only the plug end changing to match local socket types.
As a result, manufacturers can simplify product design and inventory management, while users benefit from easier replacement and broader compatibility across different regions.
Evaluate Cable Quality
High-quality cables generally offer:
- Better insulation
- Improved durability
- Stable long-term performance
- Safer operation under continuous load
Conclusion
IEC power connectors provide a standardized and flexible solution for powering electronic equipment, IT infrastructure, and industrial systems across global markets.
From compact C7 connectors used in consumer electronics to high-capacity C19 connectors designed for enterprise servers and data centers, each connector type is built to support specific power and application requirements.
Understanding the differences between IEC connector types helps simplify equipment compatibility, improve power distribution efficiency, and support safer long-term operation in both commercial and industrial environments.
At Lanz Manufacturing, we specialize in high-quality electrical connectors and power cord solutions designed to meet international safety and performance standards.
Our products are manufactured in compliance with IEC requirements to support reliable power connectivity across a wide range of applications.
Explore more insights, connector guides, and power cable solutions on our website. Our team is always available to help with product selection, technical support, and custom power connectivity requirements.
FAQs
1. What is the difference between C13 and C19 connectors?
C13 connectors are typically used for standard IT equipment such as computers and monitors, while C19 connectors are designed for higher-power devices including servers and enterprise PDUs.
2. Are C7 connectors grounded?
No. C7 connectors use an ungrounded two-pin design and are commonly used for low-power consumer electronics.
3. Can I use a C13 cable with a C20 inlet?
No. C13 connectors are designed to mate with C14 inlets, while C19 connectors are used with C20 inlets.
4. Why are IEC connectors common in data centers?
IEC connectors support standardized power distribution, easier cable management, and compatibility across a wide range of IT equipment.
5. What does IEC 60320 mean?
IEC 60320 is the international standard that defines non-locking appliance couplers used for connecting power supply cords to electrical equipment.
6. How do I identify my IEC connector type?
Connector types are usually labeled near the device inlet or specified in the equipment documentation. The shape and pin configuration can also help identify the connector family.
