A rocker switch is a common electrical control component that is used to turn circuits on and off. It is typically made of a durable plastic housing, metal contacts, and an internal spring mechanism, which allows for easy operation, a long service life, and convenient installation.
Rocker switches are widely used in household appliances, industrial equipment, lighting systems, and DIY electronic projects.
This article explains how rocker switches work, how they are constructed, how to install them on electrical cords, and what precautions should be taken during use.
How Do Rocker Switches Work?
A rocker switch controls the connection and separation of internal metal contacts through a mechanical mechanism, which allows a circuit to be opened or closed.
When one side of the switch is pressed, the internal contacts change position so that electrical current can either flow through the circuit or be interrupted. Since the operation is intuitive and responsive, rocker switches are commonly found in a wide range of electrical devices.
What Components Make Up a Rocker Switch?
Housing Structure
A rocker switch consists of several components, among which the housing protects the internal parts and provides a stable mounting base.
The housing is usually made from engineering plastic that offers heat resistance and flame retardant properties, which help withstand daily wear and environmental influences. In addition, a well designed housing can improve operating comfort and extend the overall service life of the switch.
Rocker Actuator
The rocker actuator is the part that users directly touch and operate, and its function is to transfer pressure to the internal mechanism.
When one side of the actuator is pressed, the opposite side rises, creating the characteristic rocking motion. This design makes operation simple and allows users to easily determine whether the switch is in the ON or OFF position.
Metal Contacts
Metal contacts are the components that enable electrical conduction, and their performance directly affects the stability and durability of the switch.
As the rocker moves, the contacts either connect or separate, which allows current to flow or stops it. High quality contacts are often made from copper alloys or silver plated materials, which improve conductivity and wear resistance.
Spring Mechanism
The spring mechanism ensures that the rocker switch can switch positions smoothly. Its function is to provide rebound force and positioning after the actuator is pressed so that the contacts can quickly move into the desired position.
A properly designed spring structure can improve the operating feel while reducing mechanical wear that may occur during long term use.
Why Add a Rocker Switch to an Electrical Cord?
Improved Convenience
Installing a rocker switch on an electrical cord can significantly improve convenience during operation. Users do not need to repeatedly plug in or unplug the power cord because the device can be controlled with a simple press of the switch.
This design is particularly useful for table lamps, small fans, power tools, and DIY electronic devices, which helps save time and improves the overall user experience.
Reduced Energy Consumption
A rocker switch makes it easier to manage power usage. When a device is not needed temporarily, users can switch off the power immediately, which reduces energy waste caused by standby operation.
For equipment that remains connected to a power source for extended periods, this simple control method can help lower unnecessary electricity consumption and reduce energy costs.
Enhanced Safety
Adding a rocker switch to a power cord can improve operational safety. If a fault occurs, abnormal heating develops, or power must be disconnected quickly, users can turn off the circuit immediately, which helps reduce the risk of electrical accidents.
In addition, a properly installed switch minimizes wear on the power cord and helps prevent poor electrical connections that may result from frequent plugging and unplugging.
How to Install a Rocker Switch on an Electrical Cord?
Disconnect the Power Supply
Before installation begins, it is recommended that all power sources be completely disconnected. Whether the device operates on AC or DC power, the power plug should be removed or the main power switch should be turned off first.
This helps prevent electric shock, short circuits, or equipment damage during installation while creating a safer working environment.
Identify the Wire to Be Interrupted
When installing a rocker switch, it is necessary to determine which wire the switch will control. In most cases, the switch should be connected to the live wire or the positive wire rather than the neutral wire or the negative wire.
When the correct wire is selected, the device can be fully disconnected when the switch is turned off, which improves safety.
Strip the Wire Insulation
After the wiring path has been identified, a wire stripping tool should be used to remove a suitable length of insulation from the wire. The stripping length should match the dimensions of the switch terminals so that excessive exposed conductor is avoided.
Care should also be taken not to damage the copper strands, which helps maintain good conductivity and connection strength.
Connect the Rocker Switch Terminals
The prepared wires should be connected to the appropriate terminals of the rocker switch according to the wiring diagram provided with the product.
During installation, the wires should be secured firmly within the terminals so that looseness does not occur. If screw type terminals are used, the screws should be tightened properly to ensure a stable electrical connection.
Test the Switch Function
After installation has been completed, the switch should be thoroughly tested. Once power is restored, the rocker switch should be operated repeatedly to confirm that the device can be turned on and off correctly.
The wiring connections should also be checked for overheating, sparks, or unusual sounds so that stable operation can be verified before regular use.
Common Installation Mistakes and Their Solutions
Incorrect Wiring Direction
Incorrect wiring direction is one of the most common mistakes that can occur during installation. Some users fail to distinguish between the live wire and the neutral wire, which means that the switch may control the device while internal components remain energized.
Before installation, the circuit diagram and product instructions should be carefully reviewed, and testing equipment should be used to verify the wiring.
Loose Terminal Connections
Loose terminal connections can increase contact resistance, which may cause unstable operation, overheating, or even switch failure.
During installation, the wires should be secured firmly inside the terminals, and all screws should be checked to ensure that they are fully tightened. After installation, the wires can be gently pulled to verify that the connections remain secure.
Selecting the Wrong Switch Rating
Different devices require different voltage, current, and load capacities, which means that selecting the correct rocker switch specification is very important. If the current rating is too low, the switch may overheat or become damaged during long term operation.
When choosing a switch, the rated specifications should match the actual power requirements of the device to ensure safe performance.
Ignoring Insulation Protection
Insufficient insulation protection is one of the primary causes of short circuits and electrical leakage. Some users fail to cover wiring connections with insulating tape, heat shrink tubing, or protective housings after installation, which increases safety risks.
Once installation is complete, all exposed conductors should be insulated properly so that the wiring remains safe and reliable.

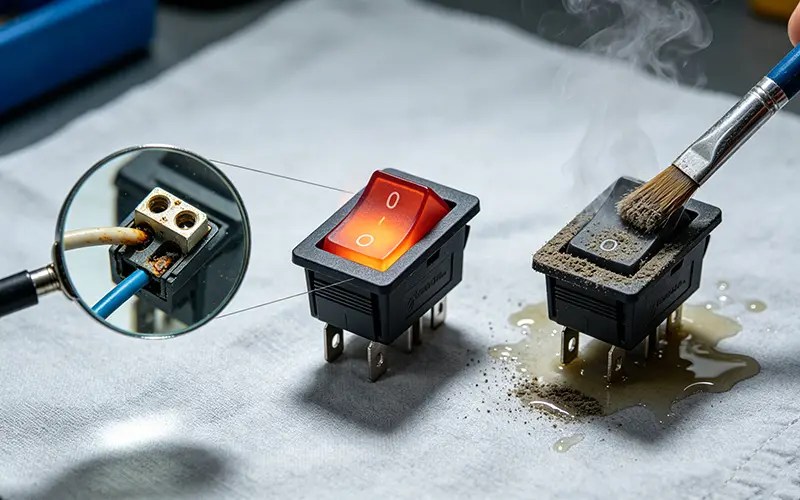

Maintenance and Inspection After Installing a Rocker Switch
Regularly Check Wiring Connections
To maintain stable long term performance, wiring connections should be inspected regularly for looseness, corrosion, or oxidation. In equipment that is exposed to vibration, terminal connections are more likely to become loose over time.
By identifying and resolving these issues early, users can reduce the likelihood of electrical faults and poor contact conditions.
Check for Overheating
A properly functioning rocker switch should not generate excessive heat. If the switch surface becomes unusually hot, it may indicate overloading, poor contact, or an incorrectly rated switch.
Regular temperature checks can help identify potential problems before they lead to equipment failure.
Keep the Switch Clean
Good maintenance practices can extend the service life of a rocker switch. When switches are exposed to dust, grease, or moisture for long periods, the performance of the internal contacts may be affected.
Regular cleaning of the switch surface and preventing liquids from entering the housing can help maintain reliable operation.
Conclusion
Rocker switches feature a simple structure and user friendly operation, making them a practical solution for controlling electrical circuits.
When they are selected correctly, installed properly, and maintained regularly, they can provide safe, reliable, and efficient control for a wide range of electrical equipment.
